Double Point Crank Less Presses
EHW Series

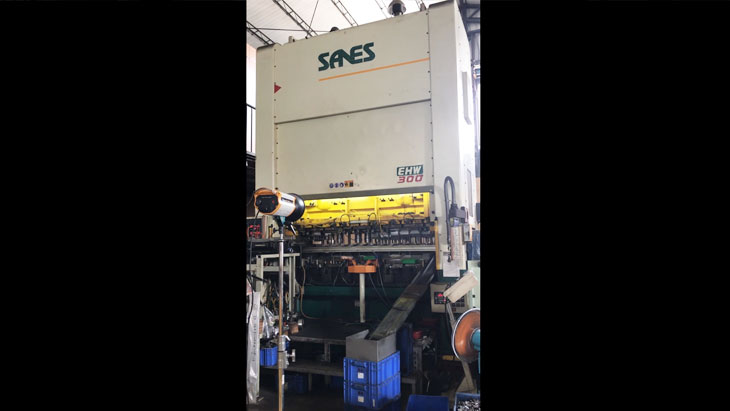

H frame double point progressive/transfer press, a standard model for general use.
- A straight-side structure avoids deformation and is the ideal frame for presswork.
However, the price of these presses is higher. - Reduces noise and vibration considerably during operation. Improve operation environment greatly.
- If a high accuracy straight-side press could be purchased at a reasonable price, it would greatly expand the press's work range and reduce costs drastically......and now the EHW series will perform.
SPECIFICATIONS
| Model | Unit | EHW-200 | EHW-300 | EHW-400 | EHW-500 | EHW-600 |
|---|---|---|---|---|---|---|
| Capacity | Ton | 200 | 300 | 400 | 500 | 600 |
| Tonnage Rating Point (About B.D.C) | mm | 6 | 6 | 7 | 7 | 10 |
| Stroke Length | mm | 120 | 150 | 300 | 300 | 400 |
| Stroke Per Minute | S.P.M | 40-100 | 35-85 | 20-45 | 20-45 | 20-45 |
| Die Height | mm | 420 | 450 | 600 | 600 | 900 |
| Slide Adjustment | mm | 50 | 50 | 100 | 100 | 150 |
| Slide Area | mm | 1800x650 | 2000x800 | 2400x1200 | 2500x1300 | 2500x1300 |
| Bolster Area | mm | 1800x850 | 2000x1000 | 2400x1200 | 2500x1500 | 2500x1500 |
| Main Motor | HPxP | 30HP(INV) | 40HP(INV) | 50HP(INV) | 60HP(INV) | 100HP(INV) |
| Required Pressure | kg/cm2 | 5 | 5 | 5 | 5 | 5 |
-Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
-Custom specifications are available upon request.
| Model | Unit | EHW-800 | EHW-1000 | EHW-1500 | EHW-2000 |
|---|---|---|---|---|---|
| Capacity | Ton | 800 | 1000 | 1500 | 2000 |
| Tonnage Rating Point (About B.D.C) | mm | 10 | 10 | 13 | 13 |
| Stroke Length | mm | 400 | 400 | 500 | 500 |
| Stroke Per Minute | S.P.M | 20-40 | 20-40 | 10-20 | 10-20 |
| Die Height | mm | 900 | 900 | 1000 | 1000 |
| Slide Adjustment | mm | 150 | 150 | 150 | 150 |
| Slide Area | mm | 3000x1500 | 3500x1500 | 4000x1500 | 4500x1500 |
| Bolster Area | mm | 3000x1500 | 3500x1500 | 4000x1500 | 4500x1500 |
| Main Motor | HPxP | 125HP(INV) | 125HP(INV) | 250HP(INV) | 300HP(INV) |
| Required Pressure | kg/cm2 | 5 | 5 | 5 | 5 |
-Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
-Custom specifications are available upon request.
